Mighty Armory

$74.95
$74.95
Sale Sold out
The Mighty Armory XMA Hold Down Die is a precision tool for smooth and consistent swaging or priming of a case. The primary function of the die is to hold down and stabilize the floor of the case f...Read more
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Product Description

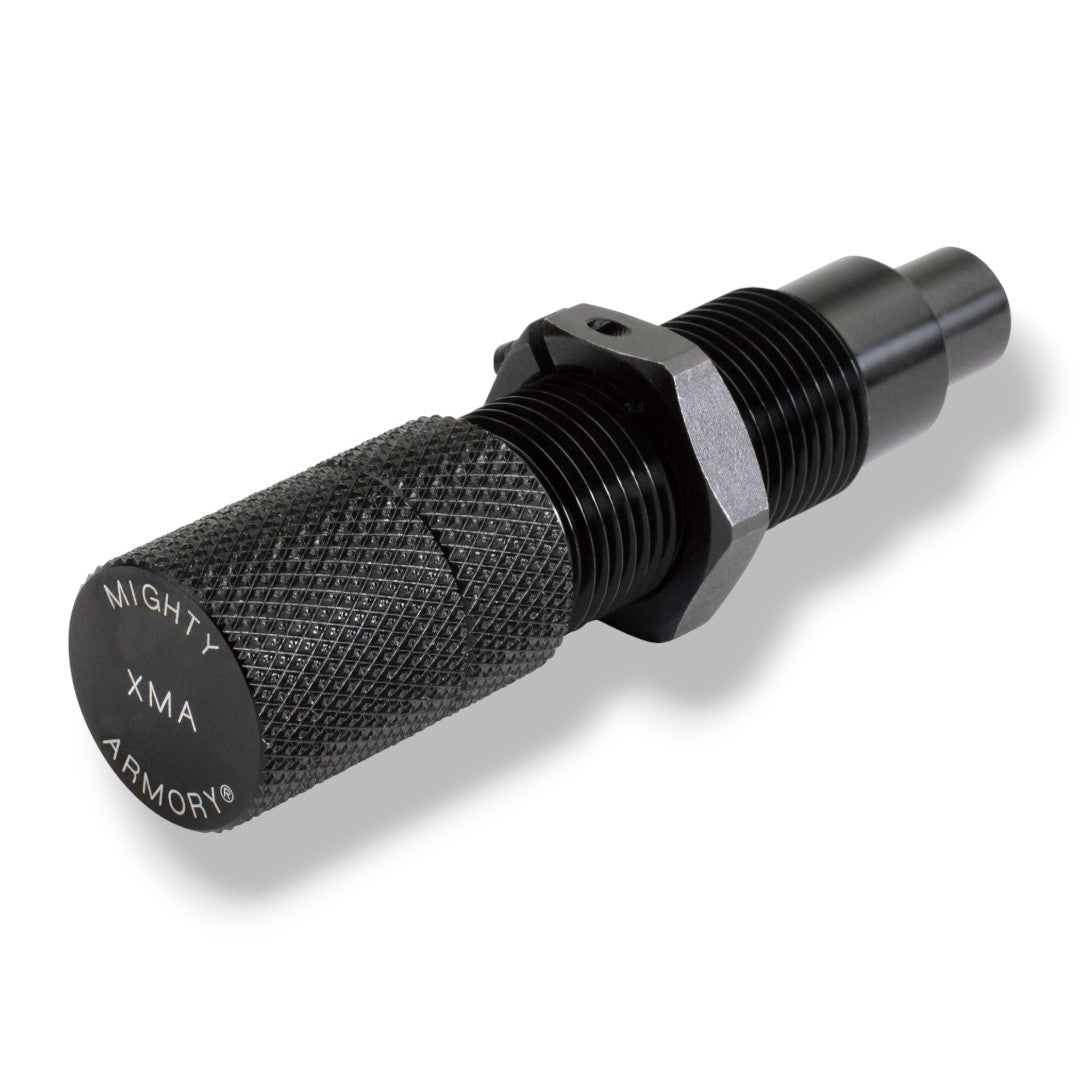

The Mighty Armory XMA Hold Down Die is a precision tool for smooth and consistent swaging or priming of a case. The primary function of the die is to hold down and stabilize the floor of the case firmly in position during the swaging or priming process, ensuring consistent and reliable operation.

Designed for use in the swaging or priming station in an auto progressive press like Dillon 650 and Dillon 1100. The die is universal.

The shaft and hold down tip is precision machined, hardened tool steel build to last with perfect vertical alignment.

The XMA Hold Down Die includes a spring and case guide which centers your case to ensure perfect alignment.

The steel case guide is newly designed to accommodate case sizes from .380 up to .308 case length.

The die is precision machined from alloy with a sleek black anodized finish. The XMA Hold Down Die combines durability with reliability when swaging and priming.

The modular die design allows for a quick change to decap by simply swapping the hold down tip to a decapping pin.

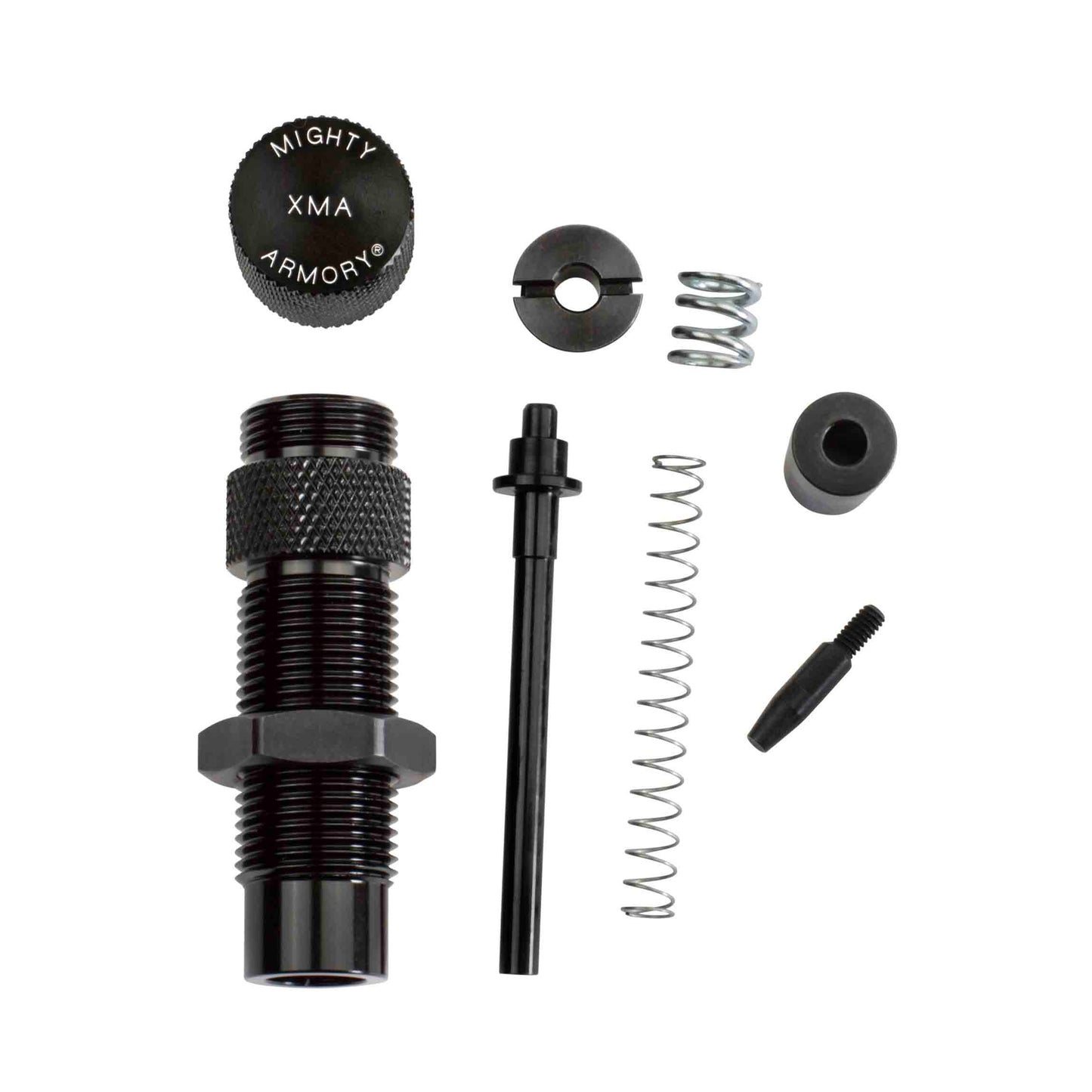

 Includes:

- Mighty Armory XMA Hold Down Die

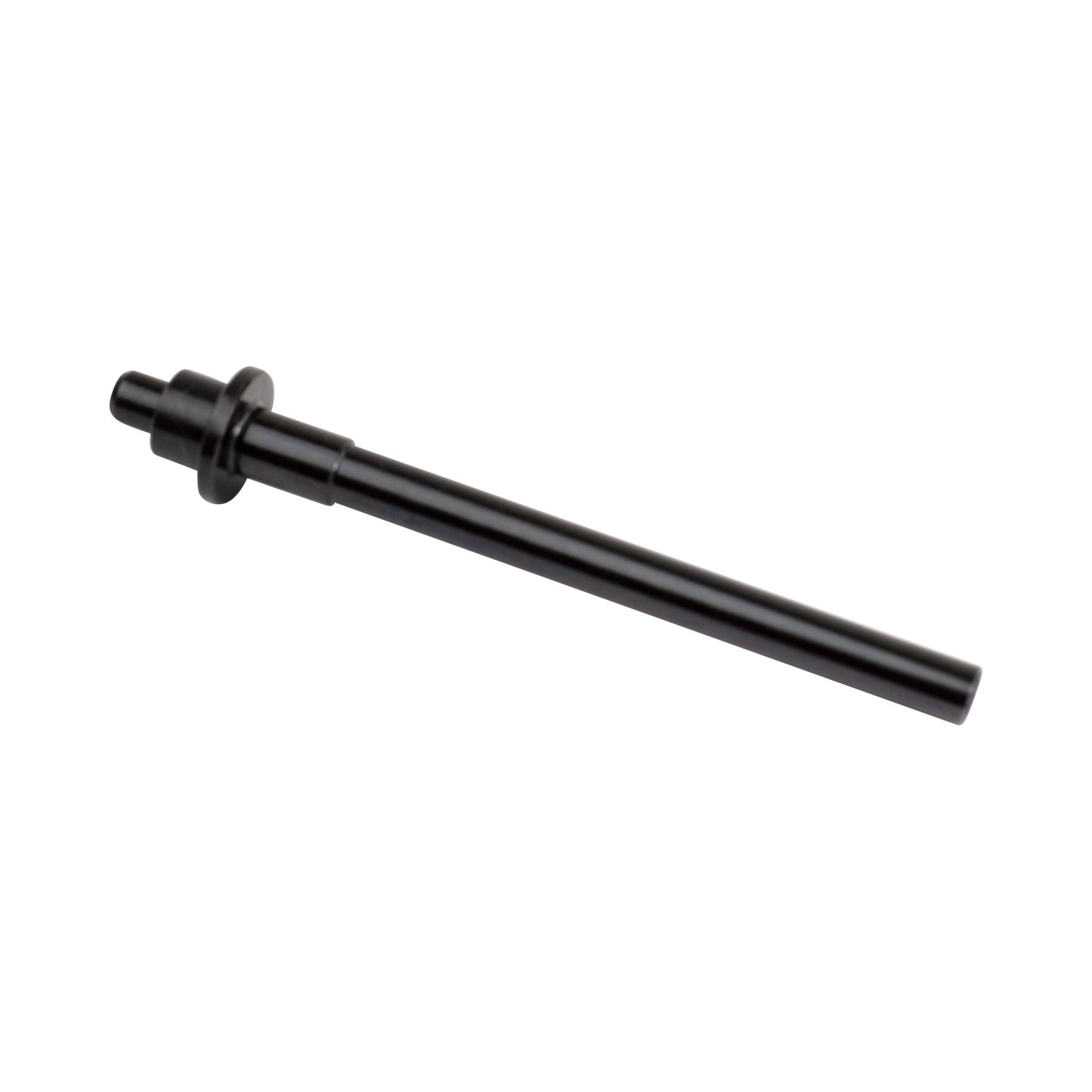

- Mighty Armory Case Hold Down Shaft

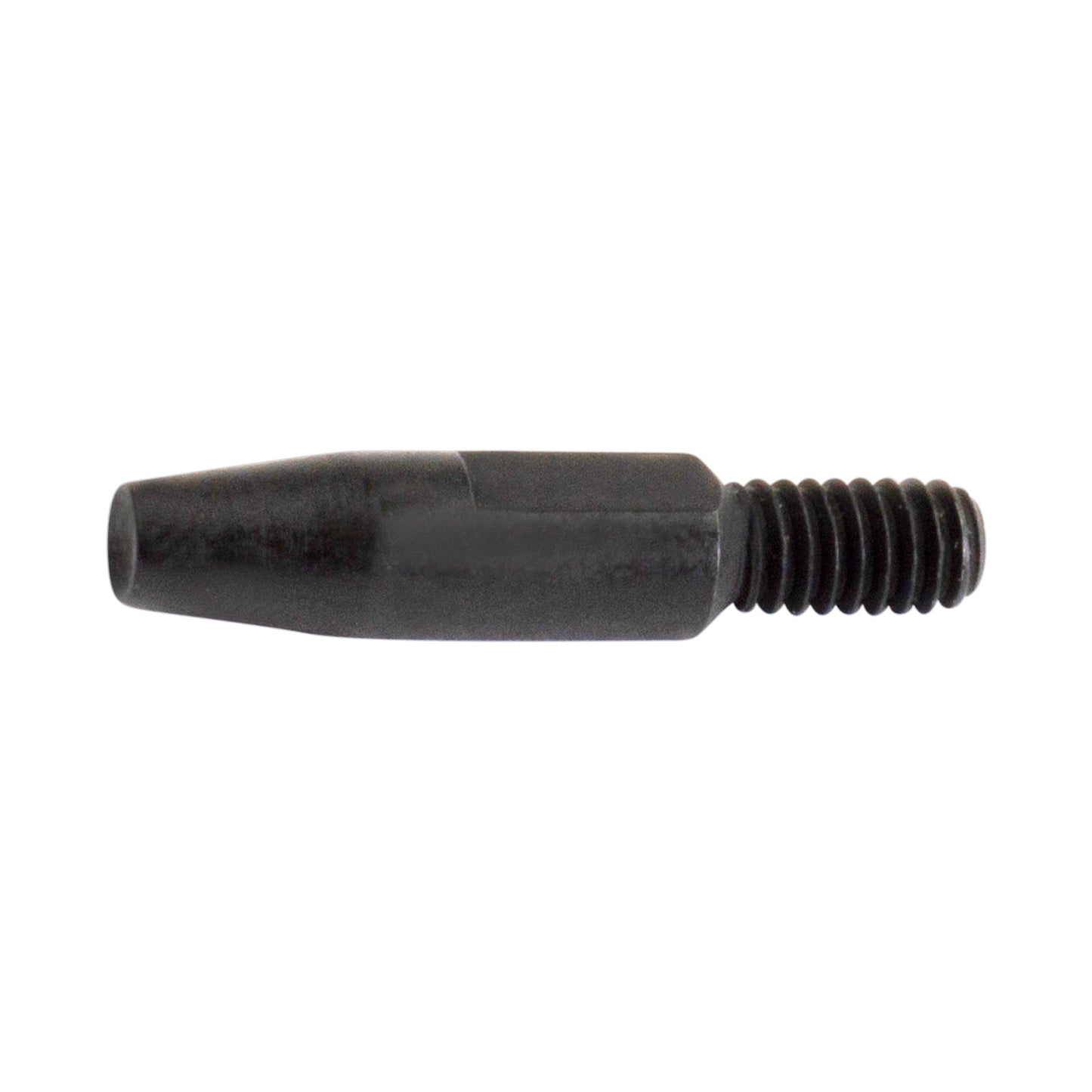

- Mighty Armory Hold Down Tip

 “Get Tough Stay Mighty”

  • "World's Toughest" Reloading Dies
  • Precision CNC Reloading Tools

Mighty Armory

    Instructions

    Click Link for XM Series Case Hold Down Die Instructions

    Step 1: Disassemble the die.

    Step 2: Add a touch of purple vibra-tite #111 or blue loctite between the shoulder of the shaft and hold down tip. Snug it with a 3/16 wrench. Do not over tighten or it may result in a snapped threaded shaft in the main shaft.

    Step 3: Drop the optional case guide into the die body. Drop the shaft through the threaded insert and slide the long spring over the shaft. Turn into the die and hand tighten.

    Step 4: Hand tighten the cap and spring onto the die.

    Step 5: Place the case onto the shell plate. Turn the die into the press station. until the die contacts the case floor. Tighten the die down 1/4 turn.

    Step 6: Lock the die down into place with the locknut provided. You should hear the sound of the snap when depriming, which is the primer flicker spring flicking the primer out of the flash hole!

    View full details
    Mighty Armory XMA Universal Hold Down Die w/Centering Case Guide Mighty Armory XMA Universal Hold Down Die w/Centering Case Guide Mighty Armory XMA Universal Hold Down Die w/Centering Case Guide Mighty Armory XMA Universal Hold Down Die w/Centering Case Guide Mighty Armory XMA Universal Hold Down Die w/Centering Case Guide

    Mighty Armory XMA Universal Hold Down Die w/Centering Case Guide

    $74.95
    $74.95
    Sale Sold out

    Dynamic Hold Down

    Designed and machined for single stage, turret presses, and lever AP presses. Key feature is the counter-spring pressure holds against the primer plunger allowing the primer to meet the half-way point into the pocket before a stop point.

    Hard Anodized Finish

    Hardened anodized finish body and cap with the same steel shafts and springs as the XMS. Designed for single state, Turret press and lever action AP presses.

    Dependable & Reliable

    Completely tool free set up, die can be disassembled and reassembled in under a minute. Spring assist at the top of the die will auto-adjust when met with inconsistent case head heights. Count on 100% primer seating and swage consistency.

    MIGHTY ARMORY

    PRECISION MACHINED

    All reloading dies are precision CNC machined for tight tolerances and perfect vertical alignment. You will immediately see, feel and shoot the difference with Mighty Armory Reloading Dies.

    Learn More

    SUPERIOR MATERIALS

    We machine our reloading dies from high-grade, hardened tool steel built to withstand the pressures from automated and lever presses. Our dies are designed and built with quality materials to last a lifetime on your press.

    Learn More

    MADE IN AMERICA

    Our goal at Mighty Armory is absolute quality products and customer service. We take pride in our innovative designs and precision machining. We don't believe in cutting corners and don't mass produce. American craftmanship is at the heart of our business.

    Learn More
    ;
