The Mighty Armory Flare and Expander Reloading Die will flare and expand rifle brass cases for all 30 caliber, including .300 Blackout, .308 Win and .30-06 Springfield. The flare shaft offers a si...Read more

    Product Description

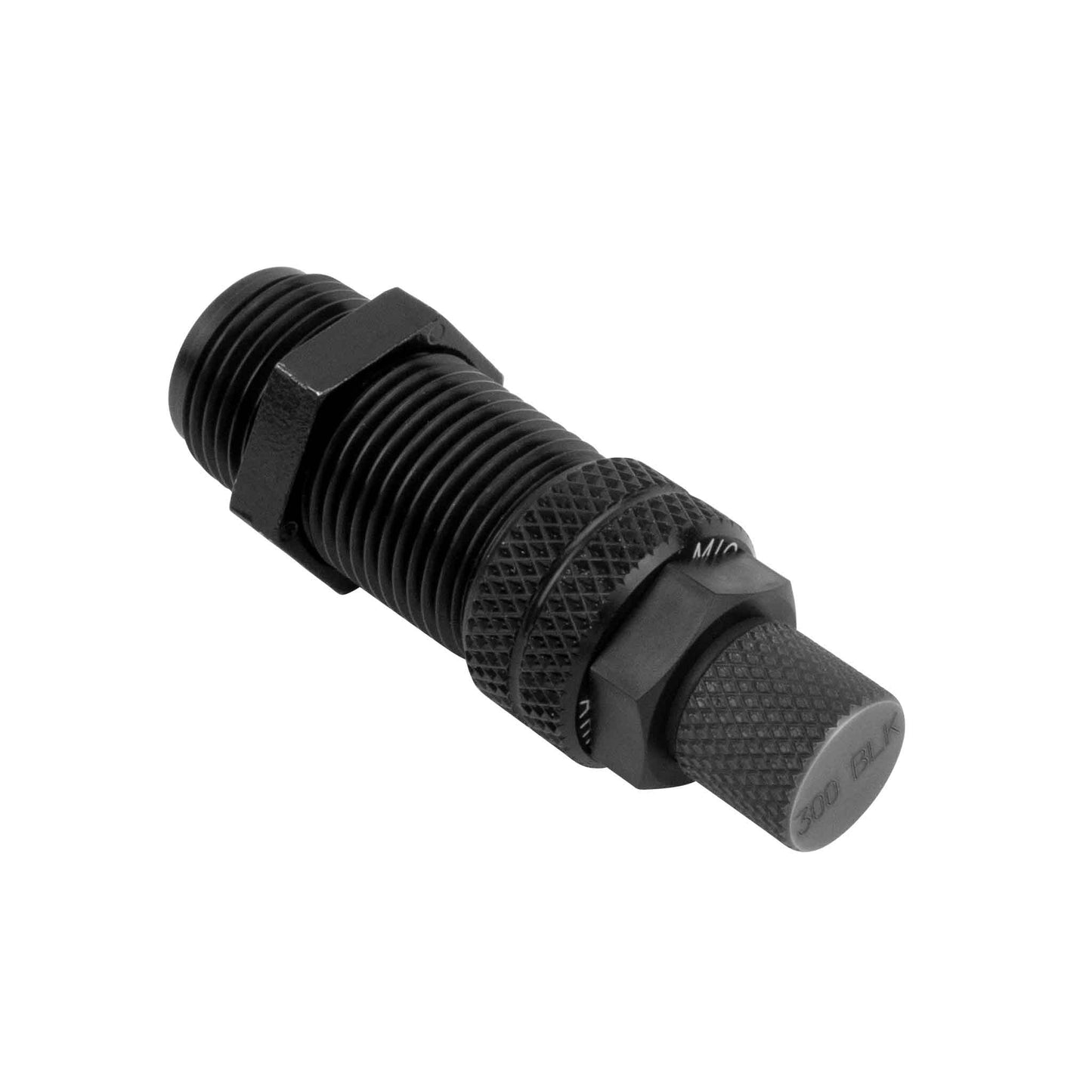

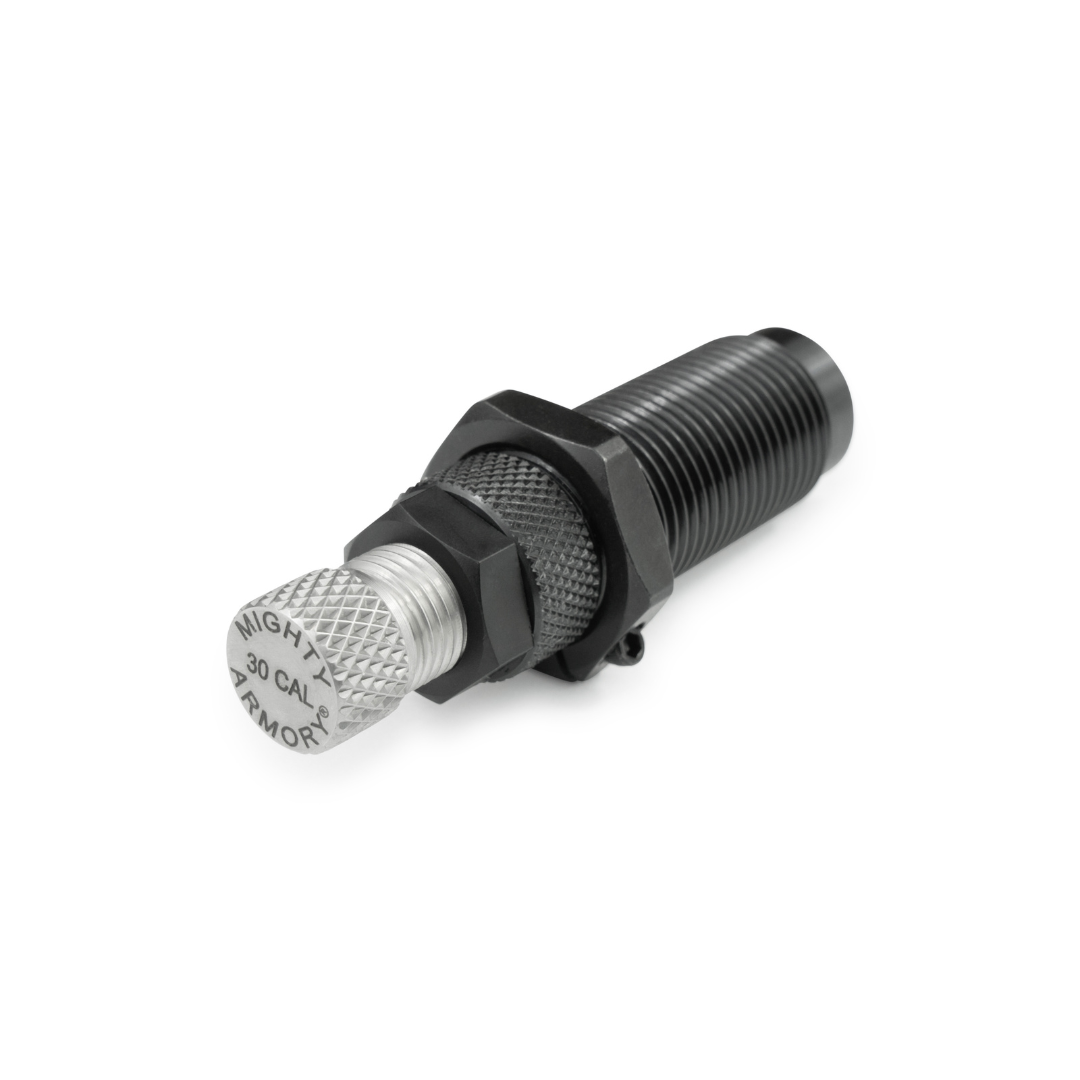

    The Mighty Armory Flare and Expander Reloading Die will flare and expand rifle brass cases for all 30 caliber, including .300 Blackout, .308 Win and .30-06 Springfield.

    The flare shaft offers a silky smooth entry and exit from your case and will not stick the case.

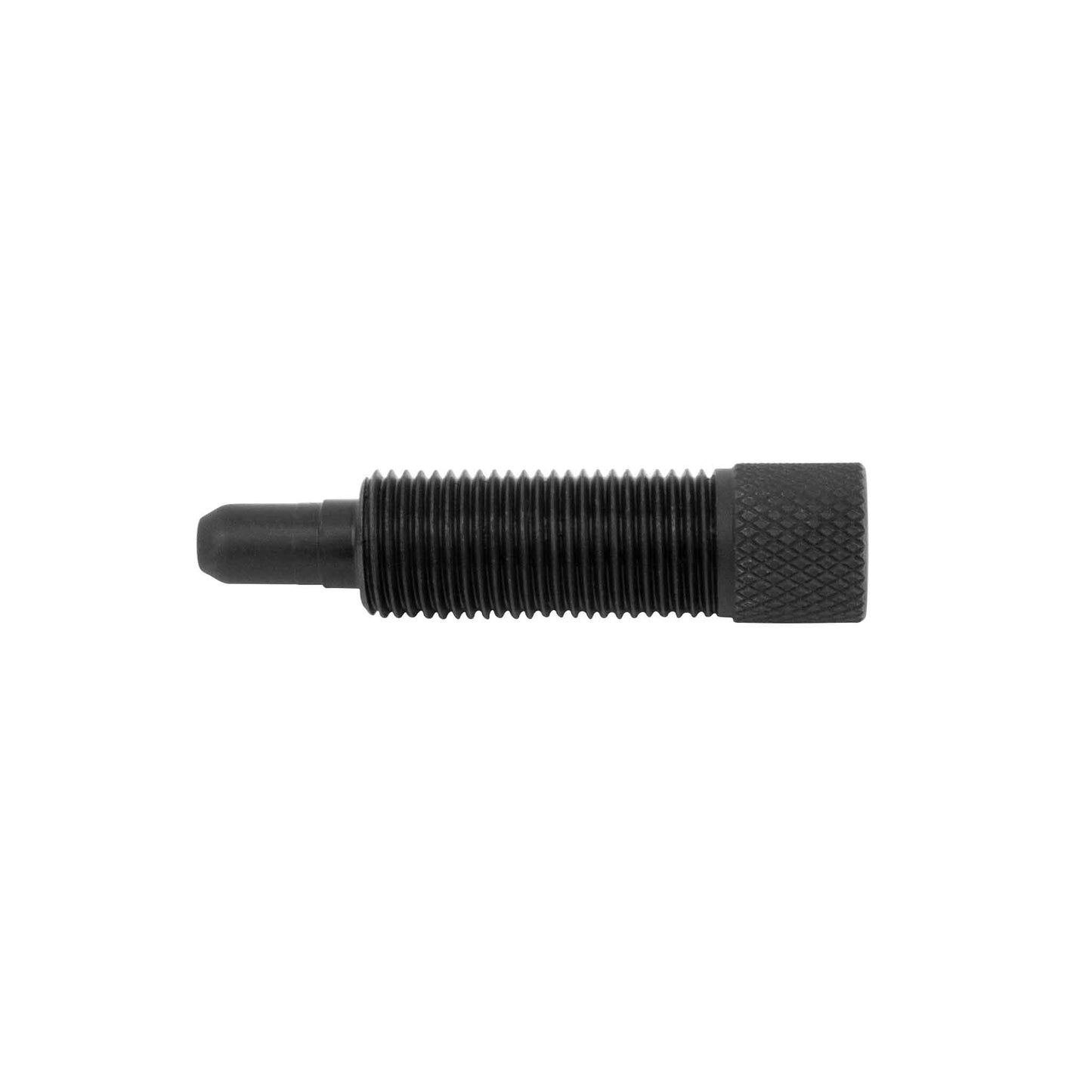

    The flare shaft flares the inside of the case mouth to facilitate easy bullet seating, and precisely expands the inside diameter of the case to your needs, -.003 below bullet diameter.

    The Flare Expander die is precision machined from high-grade tool steel with perfect vertical alignment. Heat treated to over 60 Rockwell hardness; will outlast all others. The designs are tool-free, ultra tough and meet the demands of lever presses and autodrive presses around the world.

    The Mighty Armory Flare Expander Die is an independent station die that fits any press. A locknut is included with each die to ensure you can remove the die and reinstall without having to reset it.

    Also included is a nylon nut, is optional depending on your press.

    Check out our additional Flare & Expander Dies for rifle and pistol case cartridges.

    Includes:

    “Get Tough Stay Mighty”

    • "World's Toughest" Reloading Dies
    • Precision Reloading Tools
    • Made in the USA

    Mighty Armory

    What's Included

    Popular Questions

    How or why should I flare a rifle brass case neck?

    Flaring is only necessary when you're using square-back bullets or a bullet dropper. The bullet will sit straight inside the flare and be positioned to be seated. Following a flare, a crimp will be necessary.

    If loading a taper back or boat-tail bullet, then generally when hand setting or bullet dropping, the back-end angle of the bullet will sit up straight in a non-flared case and will allow indexing to the seating station. No crimp is required. Tension is set via the die and mandrel expander.

    Instructions

    Click Link to Gold Match Rifle Flare Expander Die Instructions

    Step 1: Turn the flare die with bushing into the tool head exposing the die about 1/2 inch below.

    Step 2: With the die bushing in place, turn the flare shaft all the way up. Lower the die over the case with no contact made with the die.

    Step 3: Turn the flare shaft down until you start to feel contact against the neck of the case.

    Step 4: Raise the ram and turn the die down until you feel the pressure of the flare shaft against the case.

    Step 5: Flare should be .005 under bullet diameter. If you want more flare, raise the ram and continue to turn the die down. Inside diameter measurements should be taken.

    Step 6: Lock the die into place.

    View full details
    Mighty Armory Flare Expander Die for Reloading 30 caliber Mighty Armory shaft included with the Flare expander reloading die

    Mighty Armory 30 Caliber, 300 Blackout, 308 Win, 30-06 Flare Expander Die

    $49.95
    $49.95
    Sale Sold out

    Perfect Vertical Alignment

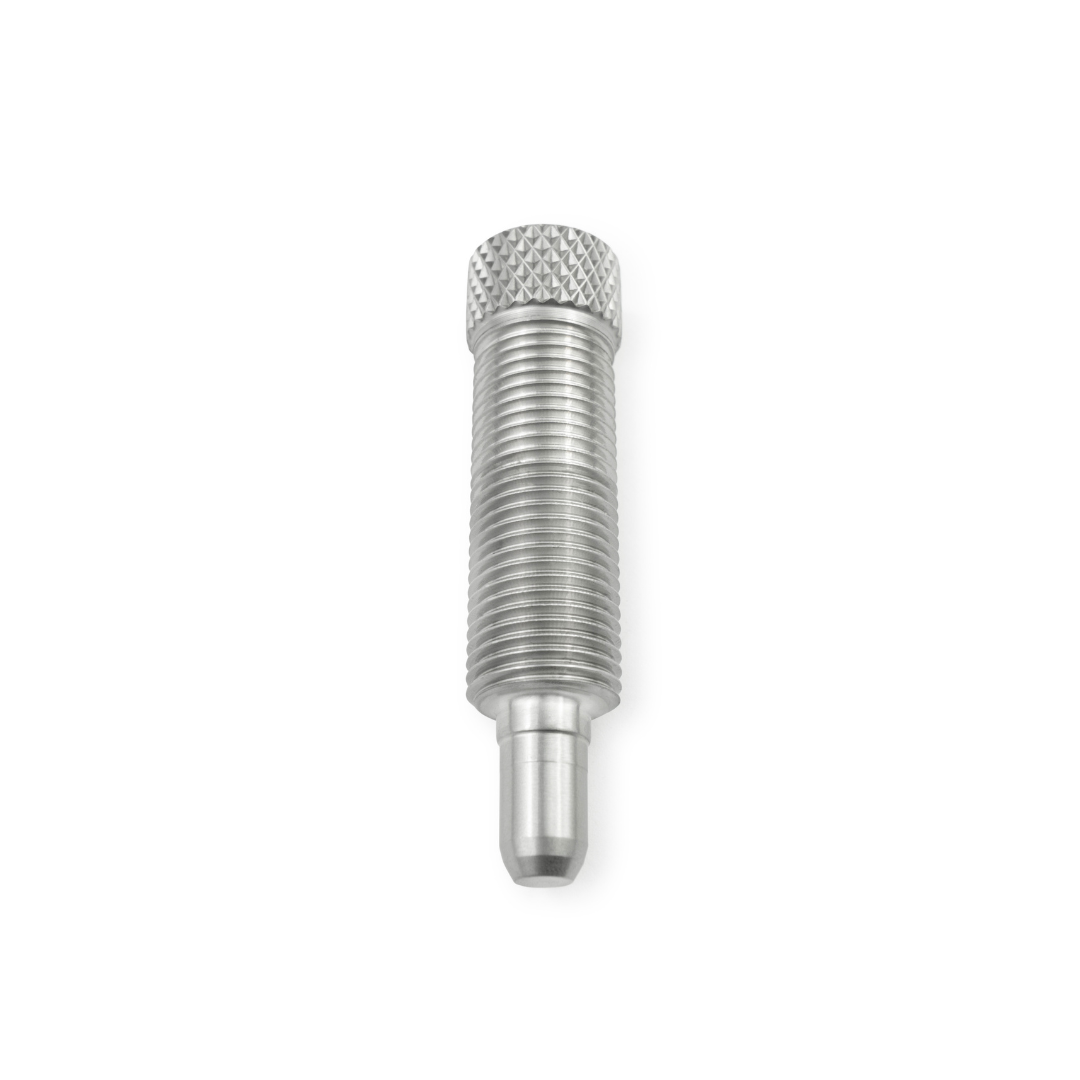

    Flare shaft is precision CNC machined from high grade tool steel with no inserts. Shaft is a one piece design.

    Tool-Free & Easy Adjustment

    Set the die into the tool head, turn the flare expander down to set the case flare diameter to hold the bullet vertically whether hand-set or from a bullet dropper. Lock it down and you're good to go.

    Will Not Stick

    Flare expander will go in and out of the case smoothly without sticking and without powder spillage.

    MIGHTY ARMORY

    PRECISION MACHINED

    All reloading dies are precision CNC machined for tight tolerances and perfect vertical alignment. You will immediately see, feel and shoot the difference with Mighty Armory Reloading Dies.

    Learn More

    SUPERIOR MATERIALS

    We machine our reloading dies from high-grade, hardened tool steel built to withstand the pressures from automated and lever presses. Our dies are designed and built with quality materials to last a lifetime on your press.

    Learn More

    MADE IN AMERICA

    Our goal at Mighty Armory is absolute quality products and customer service. We take pride in our innovative designs and precision machining. We don't believe in cutting corners and don't mass produce. American craftmanship is at the heart of our business.
