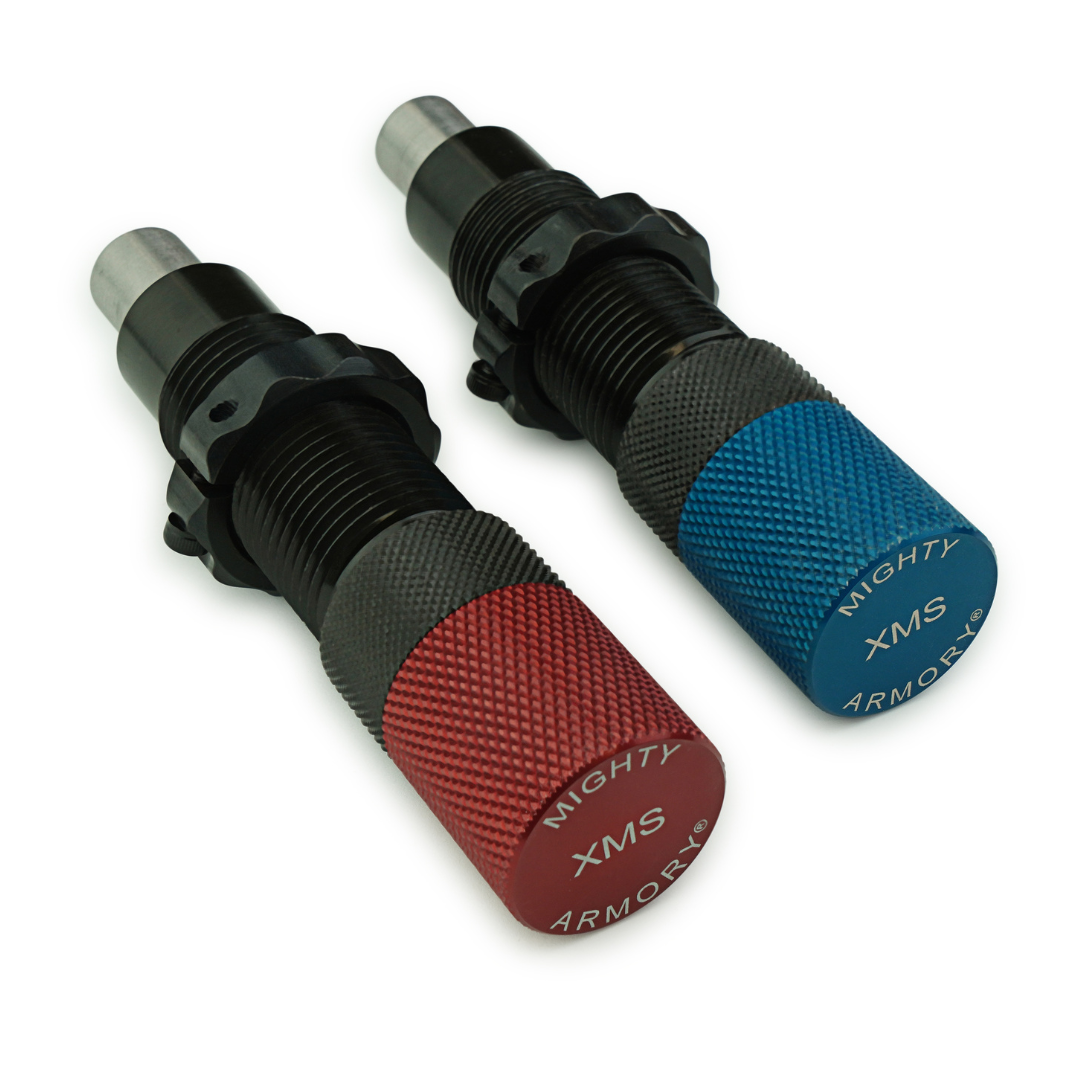

mighty armory hardened steel case hold down die for hold down and priming on autodrive press

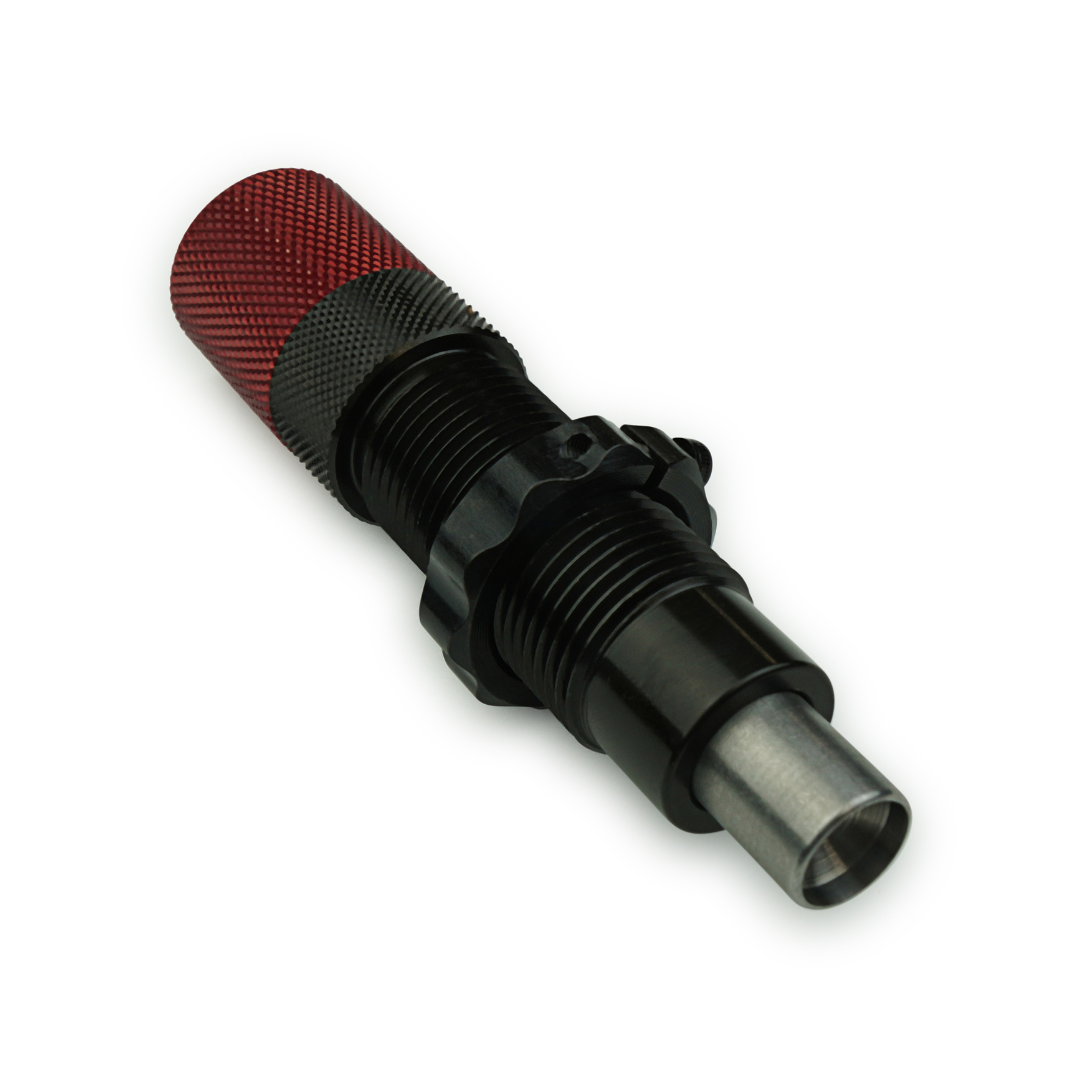

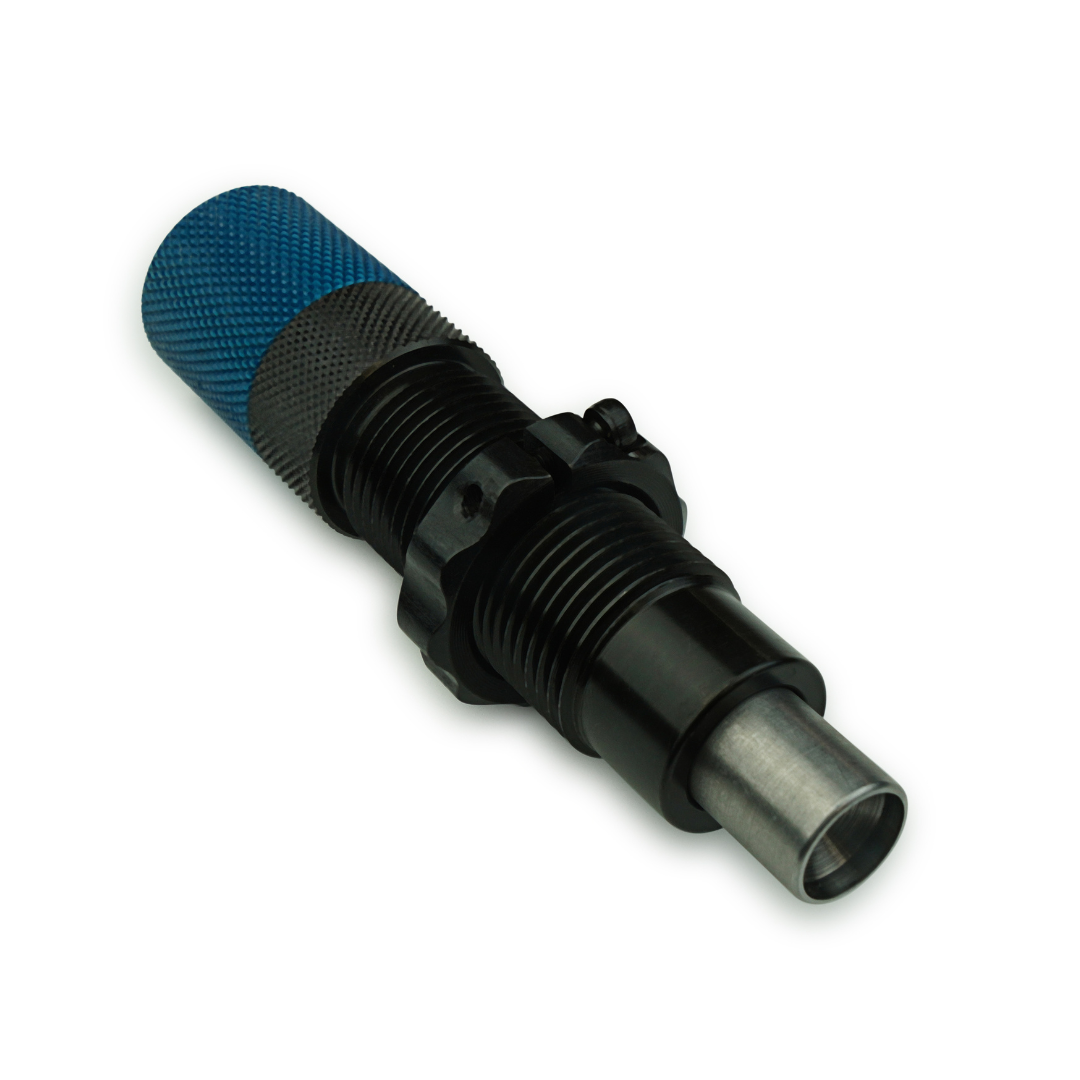

mighty armory xms hardened steel hold down die for reloading ammo
mighty armory harndened steel hold down die internal parts

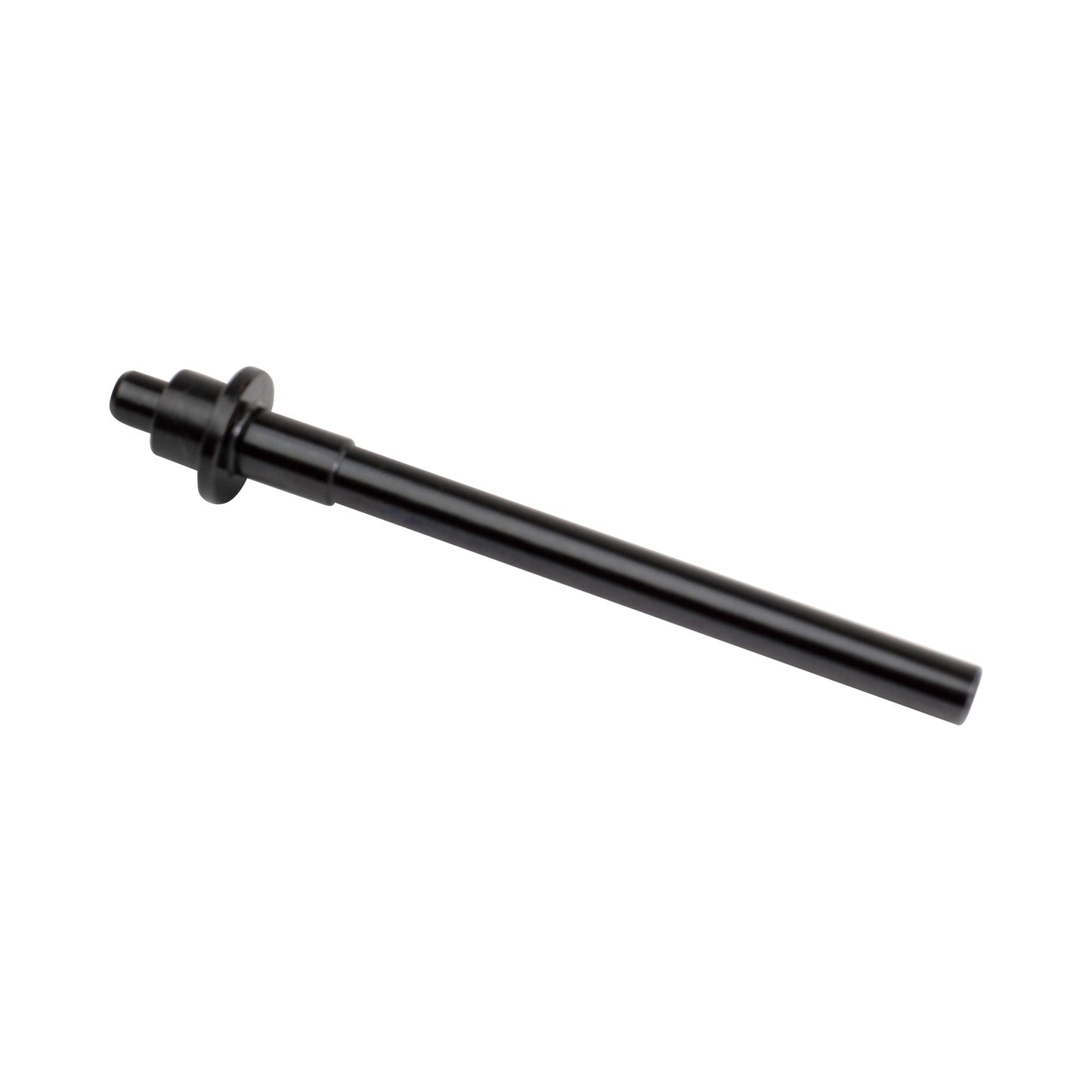

mighty armory case hold down shaft for the xms case hold down die

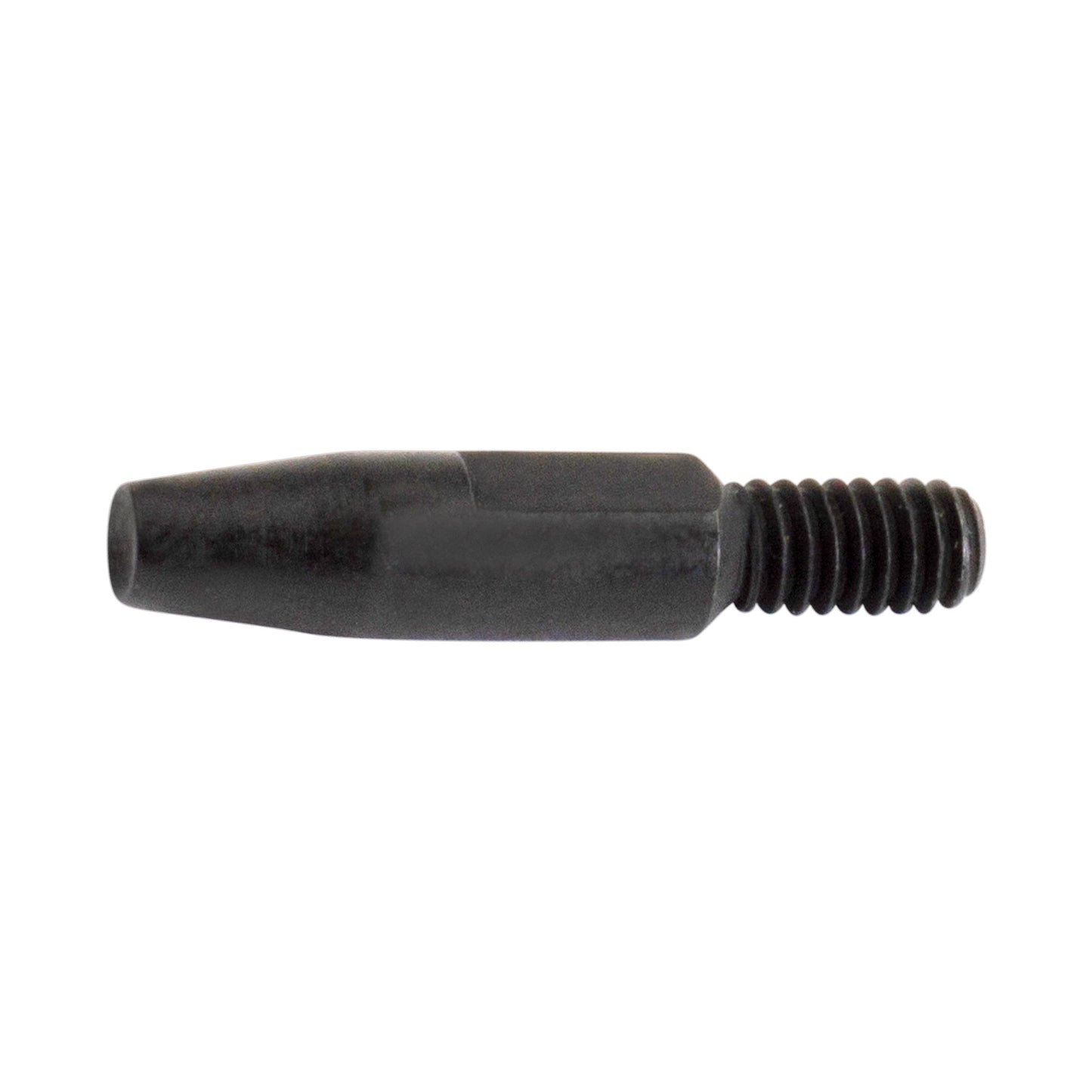

mighty armory case hold down tip
mighty armory hardened steel case hold down die for hold down and priming on autodrive press
mighty armory xms hardened steel hold down die for reloading ammo
mighty armory harndened steel hold down die internal parts
mighty armory case hold down shaft for the xms case hold down die
mighty armory case hold down tip

Mighty Armory XMS Commercial Steel Hold Down Die w/ Centering Case Guide

Mighty Armory XMS Commercial Steel Hold Down Die w/ Centering Case Guide

Mighty Armory

$84.95
$84.95
Sale Sold out
Shipping calculated at checkout.
Introducing the latest in precision engineering: The Mighty Armory XM series reloading dies.  The XMS Auto Drive Press Hold Down Die is engineered for use in swaging or priming stations across vari...Read more
  • American Express
  • Discover
  • JCB
  • Mastercard
  • Visa

Product Description

Introducing the latest in precision engineering: The Mighty Armory XM series reloading dies.

The XMS Auto Drive Press Hold Down Die is engineered for use in swaging or priming stations across various reloading presses, particularly an auto-drive press. Its primary function is to securely stabilize the case floor during the swaging or priming process, ensuring consistent and reliable operation.

Machined from hardened, heat-treated steel inside and out, with a black oxide finish, the XMS Steel Hold Down Die is built to endure the rigorous demands of high-volume and high speed reloading; built tough and built to last. The die is also compatible with lever presses like the Dillon 550, Dillon 650, Dillon 1100, Frankford Arsenal X10, and turret or single stage presses.

The XMS Die includes a spring loaded decapping system and a universal case guide to ensure precise case centering. The guide will fit all case sizes from .380 up to .308 case length.

The internal parts of the die are precision machined from high grade tool steel with 65 Rockwell hardness, providing exceptional strength and reliability for high speed operation.

Easy to set up and tool-free assembly.

“Get Tough Stay Mighty”

  • "World's Toughest" Reloading Dies
  • Precision Reloading Tools
  • Made in the USA

Mighty Armory

Instructions

Click Link for XM Series Case Hold Down Die Instructions

Step 1: Disassemble the die. Degrease all parts of the die. Rubbing alcohol works well.

Step 2: Add a touch of purple vibra-tite #111 or blue loctite between the shoulder of the shaft and hold down tip. Snug it with a 3/16 wrench. Do not over tighten or it may result in a snapped threaded shaft in the main shaft.

Step 3: Drop the optional case guide into the die body. Drop the shaft through the threaded insert and slide the long spring over the shaft. Turn into the die and hand tighten.

Step 4: Hand tighten the cap and spring onto the die.

Step 5: Place the case onto the shell plate. Turn the die into the press station. until the die contacts the case floor. Tighten the die down 1/4 turn.

Step 6: Lock the die down into place with the locknut provided. You should hear the sound of the snap when depriming, which is the primer flicker spring flicking the primer out of the flash hole!

View full details
mighty armory hardened steel case hold down die for hold down and priming on autodrive press mighty armory xms hardened steel hold down die for reloading ammo mighty armory harndened steel hold down die internal parts mighty armory case hold down shaft for the xms case hold down die mighty armory case hold down tip

Mighty Armory XMS Commercial Steel Hold Down Die w/ Centering Case Guide

$84.95
$84.95
Sale Sold out

Dynamic Hold Down

Designed and machined for commercial use. Key feature is the counter-spring pressure holds against the primer plunger allowing the primer to meet the half way point into the pocket before a stop point.

Hardened Tool Steel

100% heat-treated, hardened tool steel with a black oxide finish. Designed to withstand the rigors of an autodriven indexing reloading press, such as a Mark 7 or Dillon 1100.

Dependable & Reliable

Completely tool free set up, die can be disassembled and reassembled in under a minute. Spring assist at the top of the die will auto-adjust when met with inconsistent case head heights. Count on 100% primer seating and swage consistency.
