The Mighty Armory PUA Decapping Die is a universal decapping die recommended for use on all single stage and turret presses. Mighty Armory’s innovative decapping die designs utilize a spring-loaded...Read more
COLOR: “RED BULL”
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Product Description

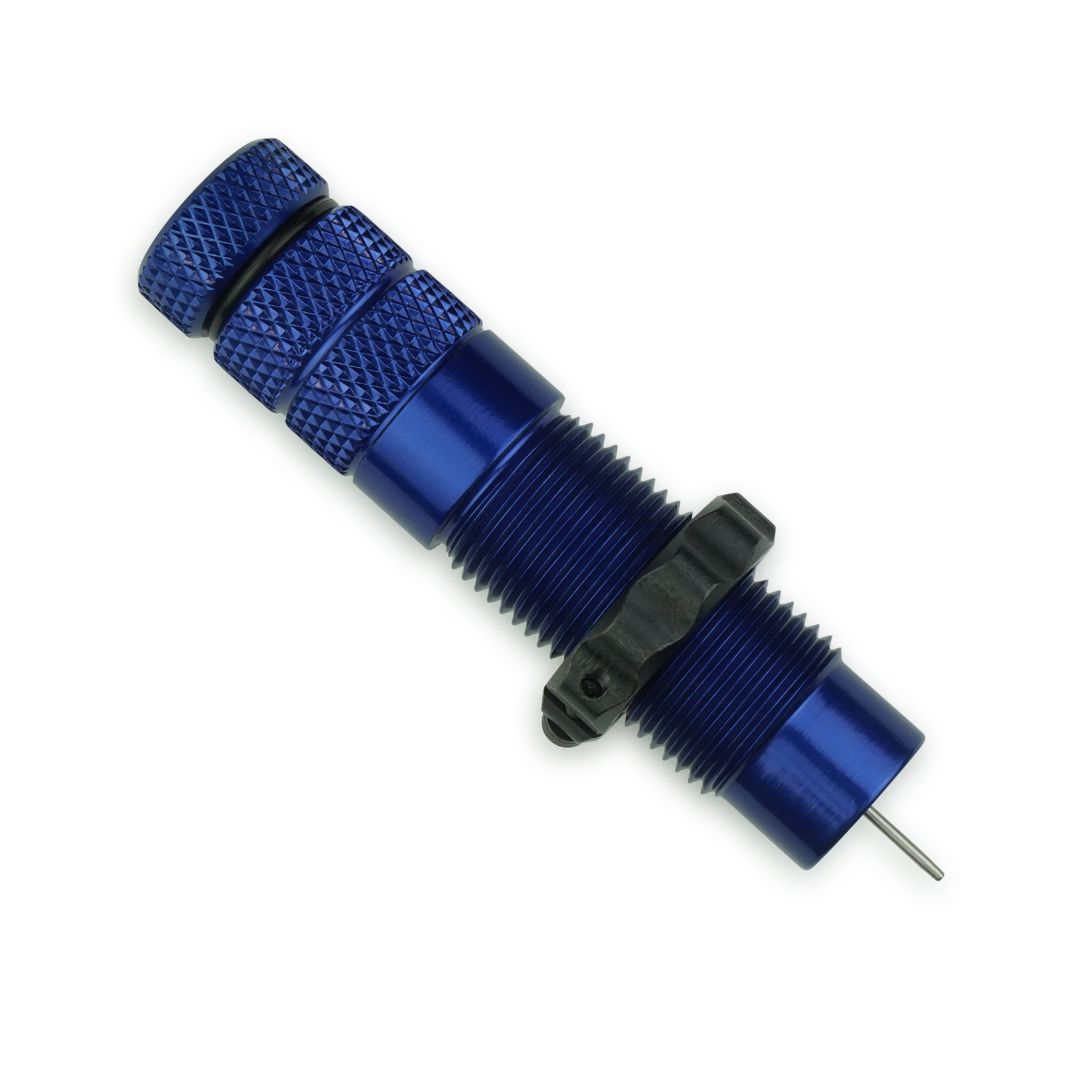

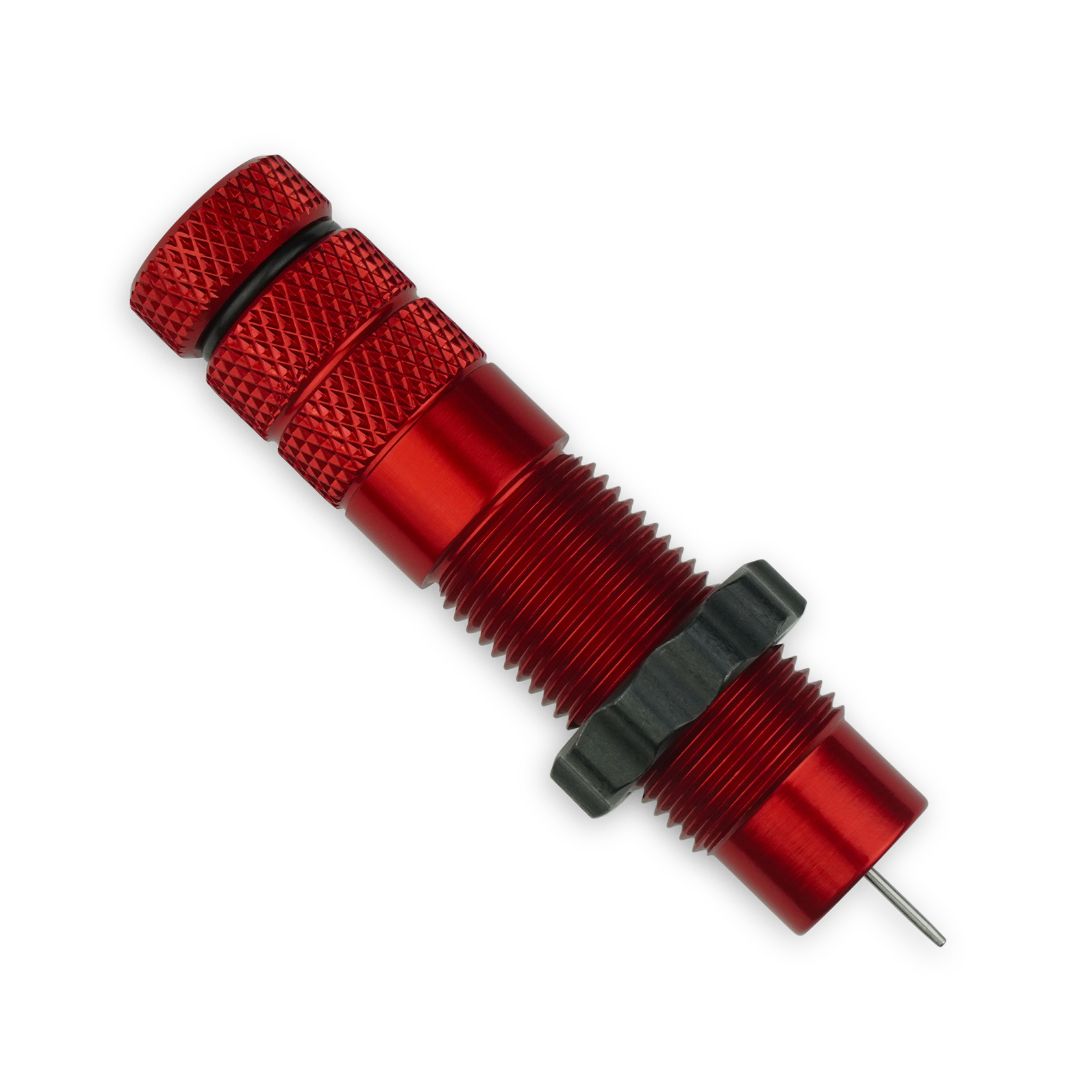

The Mighty Armory PUA Decapping Die is a universal decapping die recommended for use on all single stage and turret presses.

Mighty Armory’s innovative decapping die designs utilize a spring-loaded primer flicker. The cap and spring spring design allows upward shaft movement before contacting a stop. The rebound of the spring forces the shaft down and flicks the primer off the pin, shooting it through the press funnel and eliminating primer pullback.

100% precision CNC machined with heat treated and tempered tool steel shaft and pins.

The included .058 pins is primarily for decapping Lapua, Peterson brass and some foreign cases. It is important to know the size of your case flash hole diameter when selecting your Mighty Armory Universal Decapping Die.

Perfect vertical alignment.

The Mighty Armory PUA Decapping die will decap small flash hole case sizes. Will deprime .380 ACP cases up to 3" long cases and .595 wide, such as a .338 Lapua case. Bore diameter is .600.

Mighty Armory reloading dies are designed to be ultra tough with comprehensive, ease of use and tool-free assembly. Will easily decap any boxer primed, crimped military case.

The PUA decapping die comes with two (2) .058 diameter decapping pins, for small case sizes. Toughest in the industry. The Mighty Armory decapping pins have a 1,000 pound bend rate. No more interrupted loading days.

Magnum vs PUA Decapping Dies:

The difference between the PUA Decapping Die and the Magnum Decapping Die is the diameter of the pin.

The PUA Decapping Die includes two (2) decapping pins at .058 diameter, needed for lapua brass, peterson brass, some foreign brass, and possibly alpha brass.

The Magnum Decapping Die includes two (2) Decapping pins at .078 diameter, needed for standard and military size flash holes.

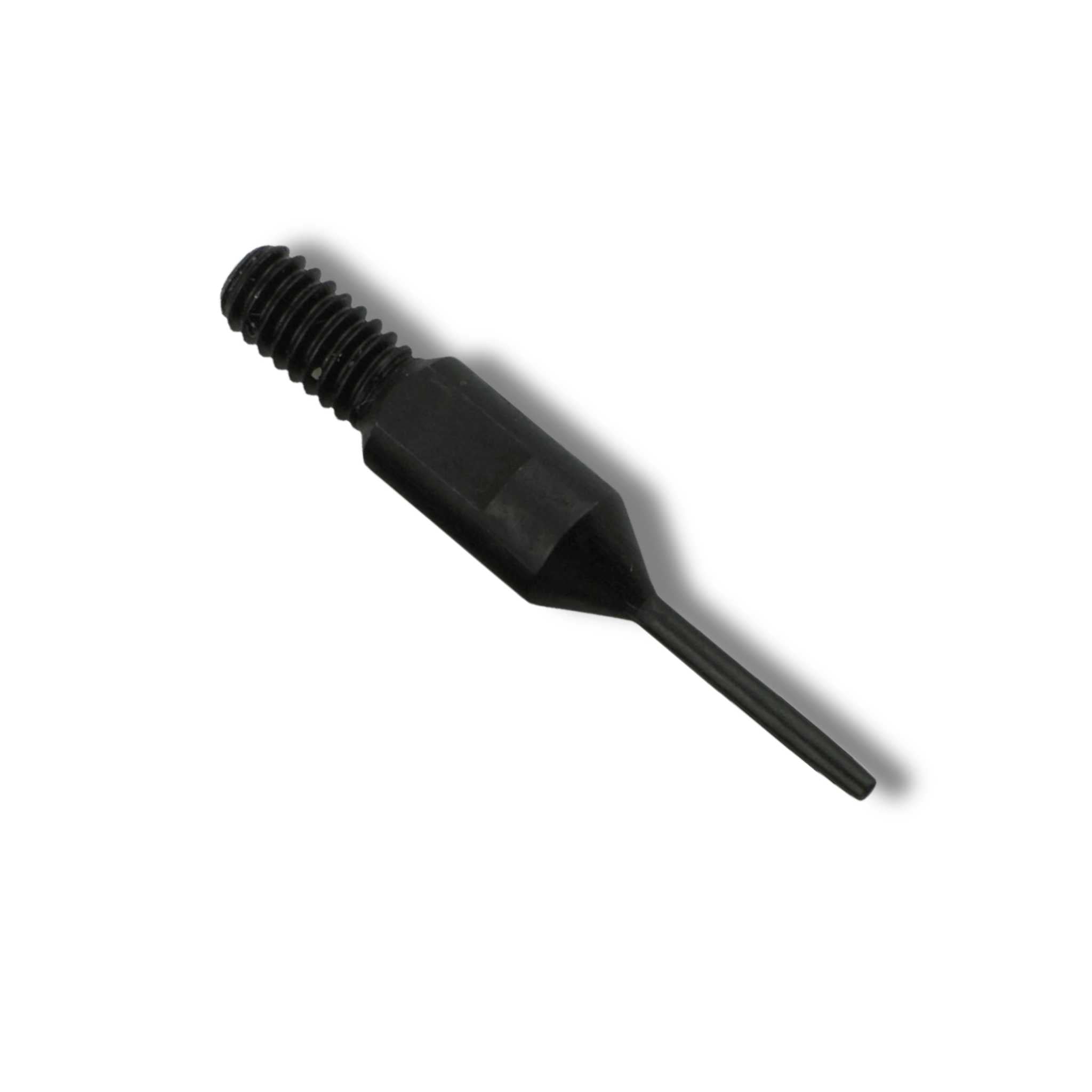

Exchangeable pin:

Mighty Armory decapping pins can be exchanged on the depriming shaft. Simply swap the pin on the shaft, add a touch of purple Vibra-Tite on the threads and you're ready to decap.

Additional pins & shafts available.

PUA Decapping Die Includes:

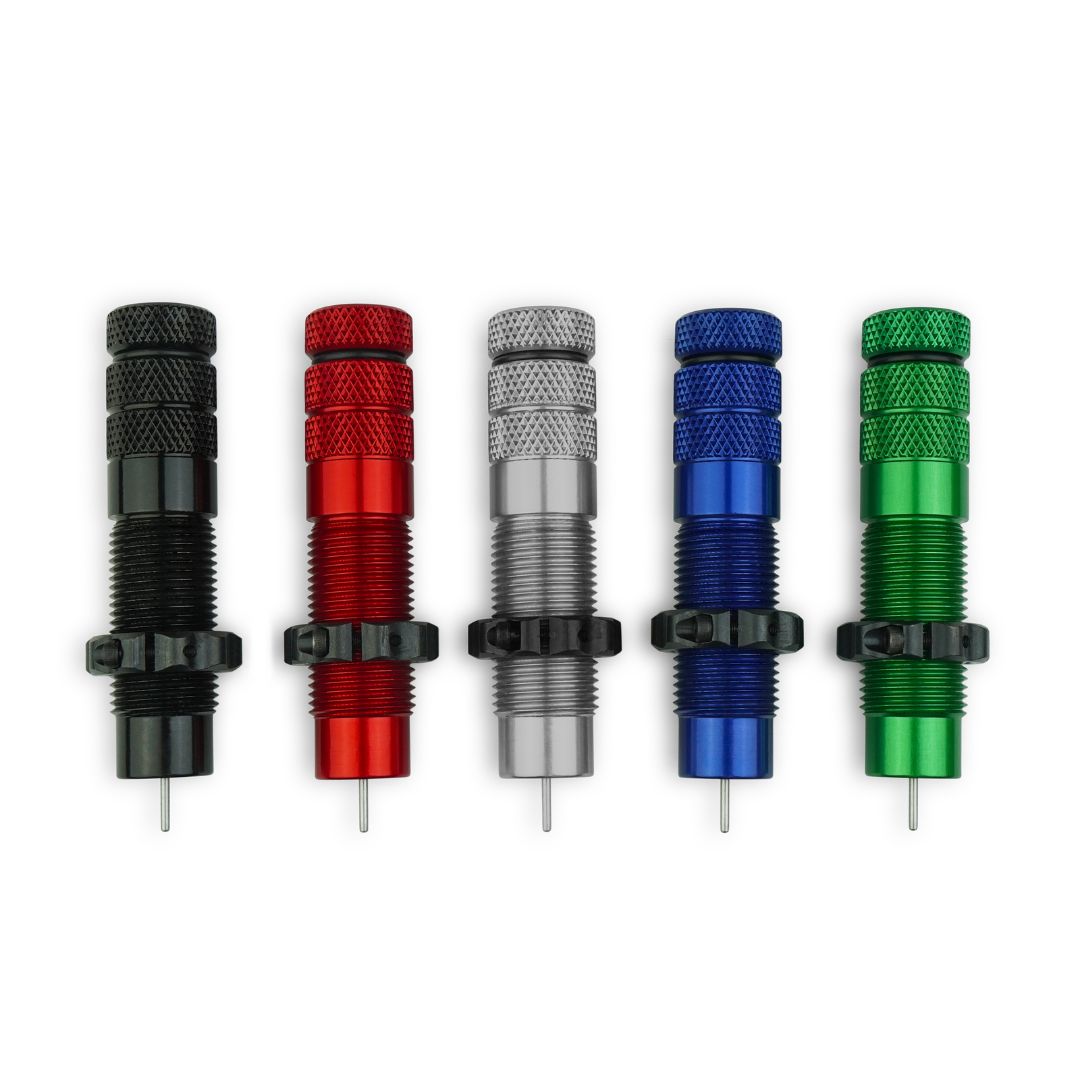

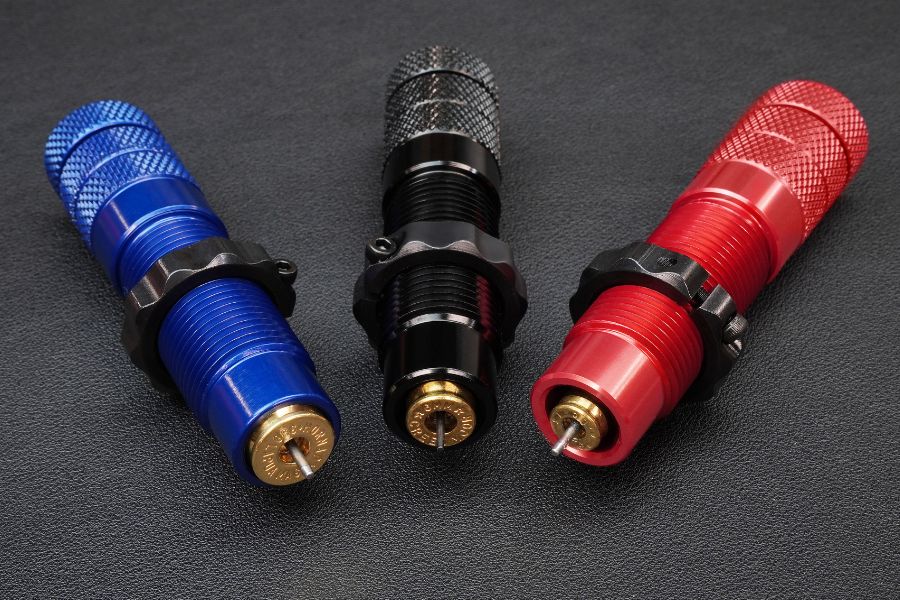

- Mighty Armory PUA Decapping Die with primer flicker cap. Choose your color.

- Heat treated and tempered tool steel shaft

- Two (2) Mighty Armory .058 pins for Lapua brass, Peterson brass, some foreign brass, and possibly alpha brass

Pro Tip:

All Mighty Armory Decapping Dies can also function as Case Hold Down Dies by simply switching out the pin on the shaft for a Universal Hold Down Tip!

“Get Tough Stay Mighty”

  • "World's Toughest" Reloading Dies
  • Precision Reloading Tools
  • Made in the USA

Mighty Armory

    What's Included

    • Mighty Armory PUA Decapping Die with primer flicker cap. Choose your color.
    • Heat treated and tempered tool steel shaft.
    • Two (2) Mighty Armory .058 pins for Lapua brass, Peterson brass, some foreign brass, and possibly alpha brass.

    Popular Questions

    1. How do I decap cases with small flash holes?

    Some of the European brass, for example, Lapua or US-made Peterson and alpha brass have small flash holes spec’d at 0.060. The Mighty Armory M2 steel .058 pin is the choice to make when decapping this brass. The Mighty Armory PUA Decapping Die is highly recommended.

    2. What is the difference between the Magnum and PUA decapping dies?

    The Magnum, & PUA decapping dies are both universal and spring operated by using a primer flicker cap and spring design. The difference between the two is the pin sizes. The Magnum includes two .078 diameter M2 steel pins, while the PUA includes two .058 diameter M2 steel pins.

    Mighty Armory's M2 steel pins are available separately and can be swapped among all of the decapping dies.

    Click here to read more frequently asked questions

    Instructions

    Click for the PUA Decapping Die Instructions Link

    Step 1. Screw pin into the shaft using purple vibra-TITE 111 on the threads. This will prevent the pin from backing out of the shaft, which can cause problems. Use a 3/16" wrench to hold the flats of the shaft and snug the pin into place. Vice it with rubber grips to prevent scarring of the shaft. Do not overtighten the pin into the shaft – just snug it. The vibraTITE will do the rest.

    Step 2. Drop the shaft and pin into the die body. Drop the spring into the cap well.

    Step 3. Tighten the cap into the cap well with the spring. Strongly hand-tighten the cap against the o-ring. Then back out the cap ¼ turn. This will allow the flicker spring action to take place.

    Step 4. Depending on your press, lower the tool head or raise the ram.

    Step 5. Turn the die down into the tool head until the mouth of the die contacts the shell plate or shell holder. Now back your die out ¼ to ½ of a turn.

    Step 6. Turn the locknut down and lock it into place.

    When you decap a case, you will know you have it set up correctly when you hear the FLICK or the SNAP of the pin flicking the primer out of the flash hole. No more primer pull-back and no more jammed primer shoots!

    View full details
    universal decapping die for small flash hole case - mighty armory mighty armory universal spring loaded decapping die silver Mighty Armory PUA Decapping Die w/ Primer Flicker Spring .058 Pins mighty armory universal spring loaded decapping die black mighty armory universal spring loaded decapping die red mighty armory universal decapping die for lapua and small flashhole brass Mighty Armory M2 Steel Decapping Pins in three sizes Mighty Armory M2 Steel small flash hole decapping pin Mighty Armory Decapping Shaft and .058 lapua brass decapping Pin

    Mighty Armory PUA Decapping Die w/ Primer Flicker Spring .058 Pins

    $49.95
    $49.95
    Sale Sold out

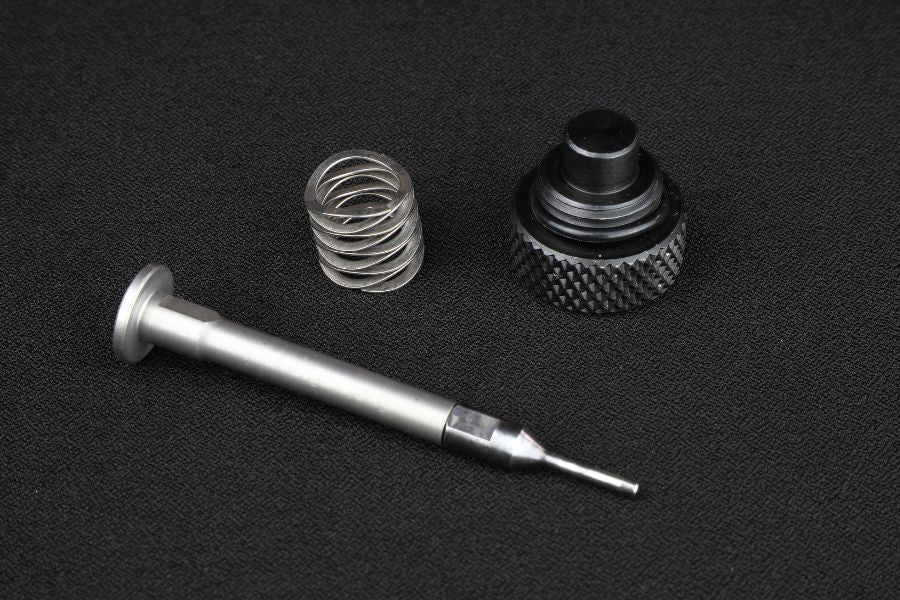

    decapping parts and primer flicker spring

    Spring Loaded Primer Flicker

    Save time and eliminate frustration. PUA decapping die rebound spring design will flick primers with every stroke of the press. Primer popping means no stopping.
    Universal decapping and hold down dies for reloading rifle and pistol

    Modular Designs

    Tool free design, set up in minutes. Heat treated shaft to 50 Rockwell hardness. Excellent vertical alignment. Mighty Armory's decapping pins and hold down tips are interchangable on the shaft.

    mighty armory universal magnum decapping dies with .078 pins

    Universal Die Bore

    Decap case sizes from .380 ACP all the way to .338 Lapua. Pin diameter is .058 specifically for Lapua and Peterson brass. The PUA Decapping Die is universal for most all cartridge case sizes. Spent primers will fly through the shoot eliminating any jams.
