Mighty Armory XMS Commercial Steel Decapping Die w/ Centering Case Guide
mighty armory hardened steel decapping die for use on an autodrive press or Mark7
mighty armory hardened steel case hold down die for hold down and priming on autodrive press
Mighty Armory XMS Commercial Steel Decapping Die w/ Centering Case Guide
mighty armory xms hardened steel decapping die for autodrive press

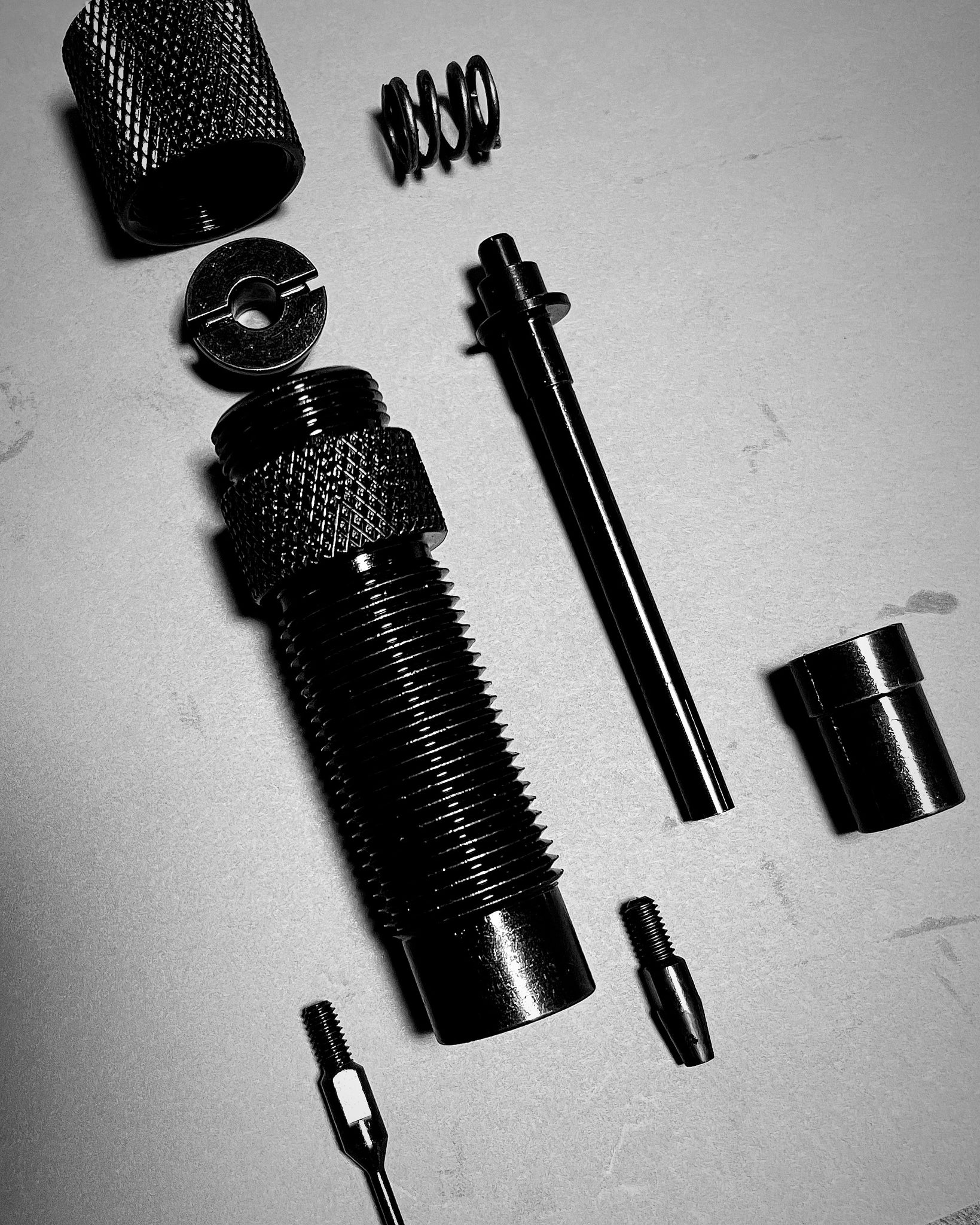

Decapping shaft and decapping pins for small and large flash holes when reloading ammunition
mighty armory steel decapping pins toughest in the industry
mighty armory hardened steel decapping die for use on an autodrive press or Mark7
mighty armory hardened steel case hold down die for hold down and priming on autodrive press
Mighty Armory XMS Commercial Steel Decapping Die w/ Centering Case Guide
mighty armory xms hardened steel decapping die for autodrive press
Decapping shaft and decapping pins for small and large flash holes when reloading ammunition
mighty armory steel decapping pins toughest in the industry

Mighty Armory XMS Commercial Steel Decapping Die w/ Centering Case Guide

Mighty Armory XMS Commercial Steel Decapping Die w/ Centering Case Guide

Mighty Armory

$89.95
$89.95
Sale Sold out
The Mighty Armory XMS Decapping die is precision machined from 100% steel inside and out. The steel is hardened for added strength and the die body has a black oxide finish. The toughness of this d...Read more
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Product Description

The Mighty Armory XMS Decapping die is precision machined from 100% steel inside and out. The steel is hardened for added strength and the die body has a black oxide finish. The toughness of this die is for use on high volume, auto drive presses. The XMS will withstand anything you can throw at it without failure. Built tough, built to last.

The XM Series Decapping dies features a spring loaded decapping system and a case guide to center the case keeping it perfectly vertical in your shell plate. The case guide will grab and centers brass at speed.

The case guide is newly designed to accommodate case sizes from .380 up to .308 length.

The spring loaded primer flicker feature prevents primer pullback, press chute jams and ringers.

Toughest in the industry and will easily decap any boxer primed crimped military case. Tool-free assembly, trouble-free, and ultra tough!

Offers the power and reliability needed for high-speed operation.

Includes:

- Two M2 decapping pins: One (1) at .078 diameter for standard brass and one (1) at .058 diameter for small flash hole sizes. 65 Rockwell. Toughest in the industry!

Pro Tip:

All Mighty Armory Decapping Dies can also function as Case Hold Down Dies by simply switching out the decapping pin with a Universal Hold Down Tip

  “Get Tough Stay Mighty”

  • "World's Toughest" Reloading Dies
  • Precision CNC Reloading Tools

Mighty Armory

What's Included

  • Two M2 decapping pins: One (1) at .078 diameter for standard brass and one (1) at .058 diameter for small flash hole sizes. 65 Rockwell. Toughest in the industry!

Instructions

Click for the XM Decapping Die Instructions Link

Step 1: Disassemble the die. Clean with rubbing alcohol to degrease all parts of the die.

Step 2: Add a touch of purple vibra-tite #111 or blue loctite between the shoulder of the shaft and pin. Snug it with a 3/16 wrench. Do not over tighten or it may result in a snapped threaded shaft in the main shaft.

Step 3: Drop the case guide into the die body. Drop the shaft through the threaded insert and slide the long spring over the shaft. Turn into the die and hand tighten.

Step 4: Hand tighten the cap and spring onto the die.

Step 5: Turn the die into the press station. When the die contacts the shell plate, back it out 1/4 turn.

Step 6: Lock the die down into place with the locknut provided. You should hear the sound of the snap when depriming, which is the primer flicker spring flicking the primer out of the flash hole!

View full details
mighty armory hardened steel decapping die for use on an autodrive press or Mark7 mighty armory hardened steel case hold down die for hold down and priming on autodrive press Mighty Armory XMS Commercial Steel Decapping Die w/ Centering Case Guide mighty armory xms hardened steel decapping die for autodrive press Decapping shaft and decapping pins for small and large flash holes when reloading ammunition mighty armory steel decapping pins toughest in the industry

Mighty Armory XMS Commercial Steel Decapping Die w/ Centering Case Guide

$89.95
$89.95
Sale Sold out

Built for Speed

The power and reliability for Autodrive Presses. The enclosed design and heavy duty primer flicker spring ensures against primer pull back. Shoot spent primers to wasteland.

Extreme Strength & Durability

Tool free design. Extremely tough, heat-treated, black oxide steel will crush flying cases. Set your drive at 3,000 and hit go!

Dual Spring Action Design

Case guide centers the case. Pin hits the flash hole every time. Decap cases from .380 ACP to .308 Win.

MIGHTY ARMORY

PRECISION MACHINED

All reloading dies are precision CNC machined for tight tolerances and perfect vertical alignment. You will immediately see, feel and shoot the difference with Mighty Armory Reloading Dies.

Learn More

SUPERIOR MATERIALS

We machine our reloading dies from high-grade, hardened tool steel built to withstand the pressures from automated and lever presses. Our dies are designed and built with quality materials to last a lifetime on your press.

Learn More

MADE IN AMERICA

Our goal at Mighty Armory is absolute quality products and customer service. We take pride in our innovative designs and precision machining. We don't believe in cutting corners and don't mass produce. American craftmanship is at the heart of our business.
